SQL recursive schemas

SQL recursive schemas



One of the interesting features of relational databases is the possibility for a table to reference itself.

Suppose we want to represent the file folder system in a database. We can define a table having, for example, 3 fields: id, parent_id and name:



We can then create a self referencing relationship between the id and parent_id field.

Simple (and elegant) solution!

Yes, but that also let us inherit all specific constraints of recursive patterns.



The figure above shows the simple (and somehow elegant) of the table schema or pattern.

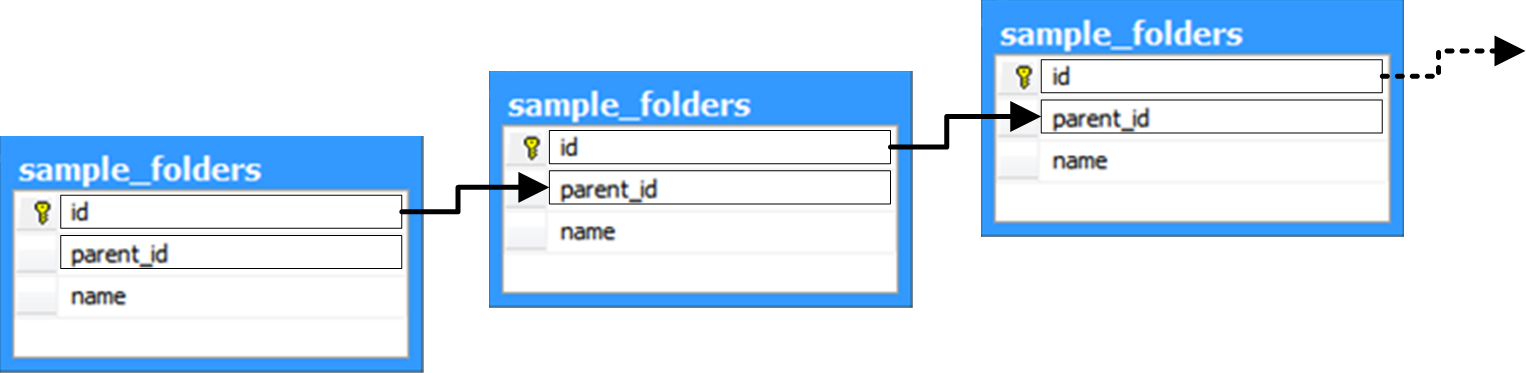

What it doesn’t show is how the ‘real world’ records will look like when stored in the table:





Two important constraints of such recursive schema are:

·         Path readability: i.e. as the schema allows an infinite nest levels, reading an item path may cause a stack overflow;

·         Cyclic references: i.e. a folder that references itself (or one of its children) as a parent (which may end up by creating infinite path readability loop;



The Nest level problem

A function or stored procedure for reading an item path may look like this:



CREATE FUNCTION dbo.Read_path

(

       @item_id int

)

RETURNS nvarchar(max)

AS

BEGIN

       declare             @parent_id   int,

                    @path        nvarchar(max),

                    @name        nvarchar(50)



       select @parent_id   = parent_id,

             @name        = name

       from dbo.sample_folders

       where(id = @item_id)



       if @parent_id is null

             return @name



       -- recursive call

       return dbo.Read_path ( @parent_id) + N'\' + @name

END

GO





Such a function will work nicely as long as the folder’s nest level remains in a ‘reasonable’ value. For example, in MS SQL Server, nest level (recursive call stack whose value can be returned at any time by the @@nestlevel system function) has a maximum of 32.



So, it is more precautious to test current @@nestlevel value before proceeding:



if @@nestlevel >= 32

       return N'Path nest level exceeds allowed value'



However, doing so breaks the efficiency and usability of our pattern. The best solution would be to get rid of the recursive call inside our function. Here is an example using a goto label:



       DECLARE @folder_name       nvarchar(255),

              @parent_id   int,

              @cur_item_id int,

              @path        nvarchar(max)



       SELECT @path        = N'',

              @cur_item_id = @item_id



-- recursion label

get_nested_path:

       SELECT @folder_name = f.name,

             @parent_id   = f.parent_id

       FROM   dbo.sample_folders AS f

       WHERE( f.id = @cur_item_id)





       if @parent_id is null

       begin

              -- We are on the root

              return @folder_name + @path

       end



       select @cur_item_id = @parent_id,

              @path        = N’\’ + @folder_name + @path



       -- goto recursion label

       goto get_nested_path





Cyclic references problem

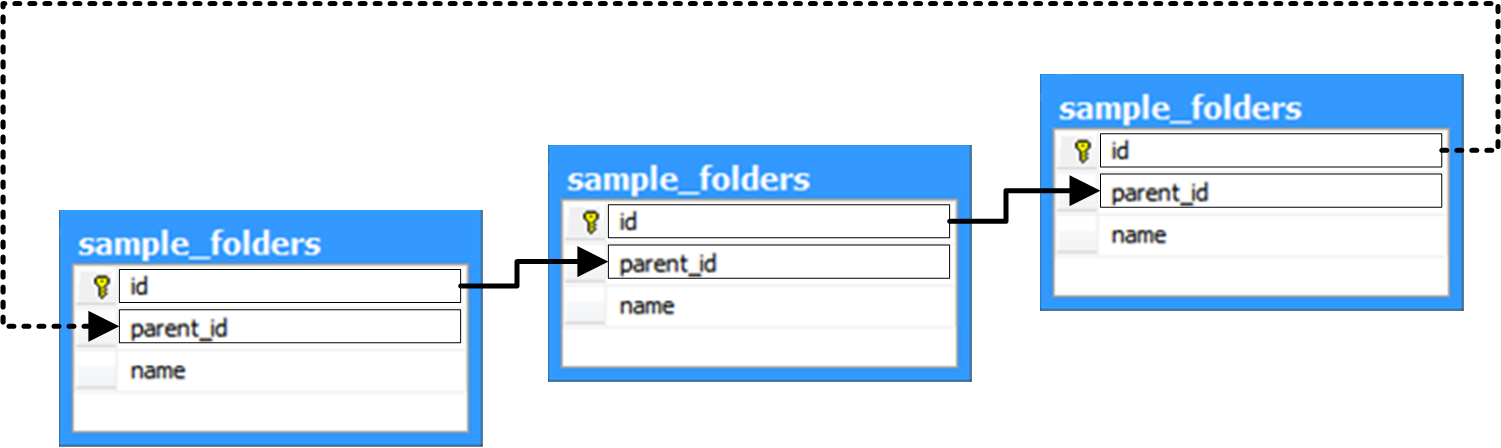

Our read path function can still be trapped into an infinite loop that can be caused by cyclic references… i.e. a folder referencing itself or one of its children as a parent:





One way to prevent cycling references is to create a constraint on the folders table that tests for cycling references. The constraint may call a function that returns true (1) if the item is not valid:



CREATE FUNCTION [dbo].[Is_cyclic_folder]

(

       @item_id            int,

       @parent_id          int

)

RETURNS bit

AS

BEGIN

       -- if this is a root item: OK

       if @parent_id is null

             return 0



       -- self referencing?

       if @parent_id = @item_id

             return 1



       declare             @parent_folder_id   int,

                    @folder_id          int



       -- initial parent folder

       select @parent_folder_id = @parent_id



       while NOT @parent_folder_id is null

       begin

             -- if the current parent folder is one of children folders:

             -- then this item is cyclic (NOT VALID)

             if @parent_folder_id = @item_id

                    return 1



             select @folder_id   = @parent_folder_id



             select @parent_folder_id   = parent_id

             from dbo.sample_folders

             where( id = @folder_id)

       end



       return 0

END

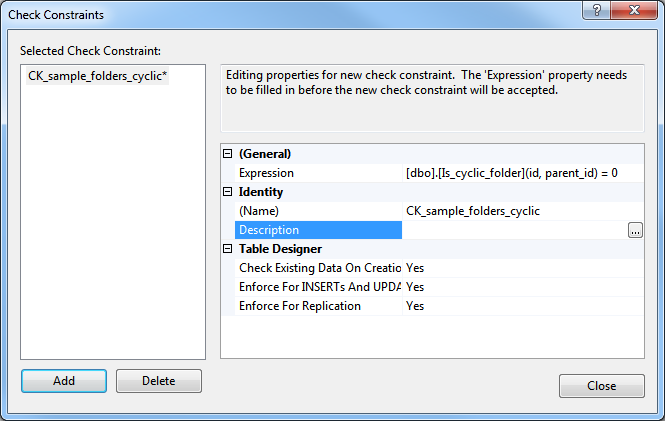

The constraint may look like this:



ALTER TABLE dbo.sample_folders ADD CONSTRAINT

       CK_sample_folders_cyclic CHECK ([dbo].[Is_cyclic_folder](id, parent_id) = 0)
