OneNote Explorer

In January 2004, Chris Pratley wrote about "OneNote genesis". His article ended by this sentence: "…I can see how this might become addictive."

Yes, as many people who know OneNote often use the word, "addictive" is a correct adjective for OneNote.

What makes it addictive is probably the fact that it is a medium for 'not-yet-documented' ideas. In the same time, it offers a good and simple hierarchical storage that helps organize those ideas for future documentation.

One great thing is that OneNote exposes its objects and methods for developers through an API for extending its features. There are many feature-rich add-ins for OneNote, which can fit your needs in several areas.

In my case, I needed a sort of 'periscope' to explore my own notes. A tool that can let me see my notes ordered by creation or last update dates, mark and retrieve some of them as favorite items, have a quick preview of a note, locate the section's file folder, search notes' titles and/or content… etc.

Using the API, I could write a 'OneNote Explorer'… a tool I started writing in 2010, enriching it with new features from time to time.

OneNote API

OneNote API is xml-based. A set of methods in the Application Interface let you get information about opened notebooks and their structures (section groups, sections, pages… etc.) in xml format.
Understanding OneNote xsd schema is thus essential.

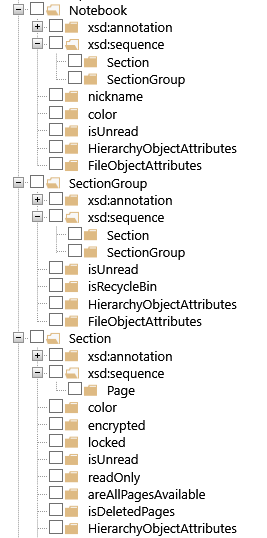

OneNote XSD overview: main objects

 onenote xsd

  • A Notebook is (similar to file folder) a sequence of:
    • Sections
    • And/or Section groups. Where a Section group itself is a sequence of:
      • Section groups
      • And/or Sections. Where a Section is a sequence of:
        • Pages.

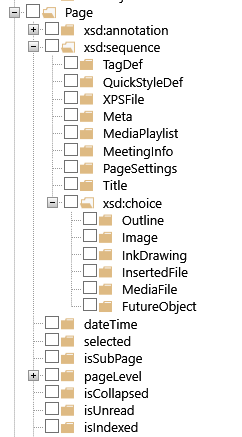

OneNote Page definition

onenote page xsd

  • Apart from its attributes (see xsd elements above), a Page is a set of either:
    • An Image
    • A Drawing
    • A File
    • A Media
    • An Outline (similar to html main <div>) which is (somewhat simplified here) is a sequence of:
      • OE children (OneNote Elements). Each OE can be either:
        • An Image
        • A Table
        • Drawing
        • Or a sequence of:
          • T (text range)

Application overview

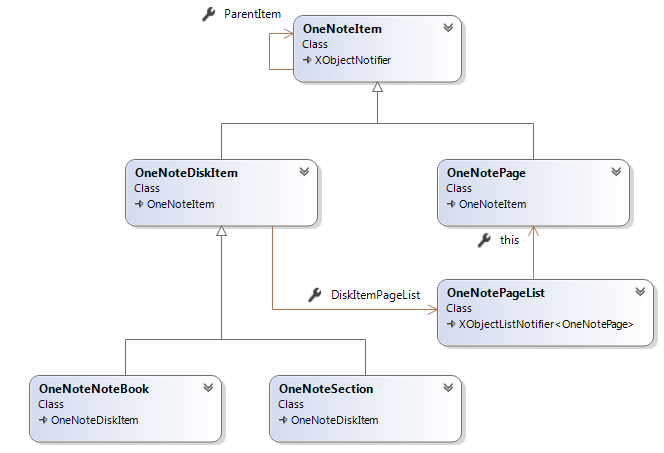

Application view model classes:

 application main classes

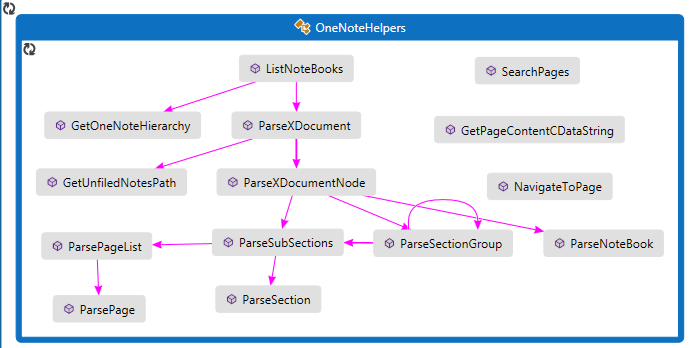

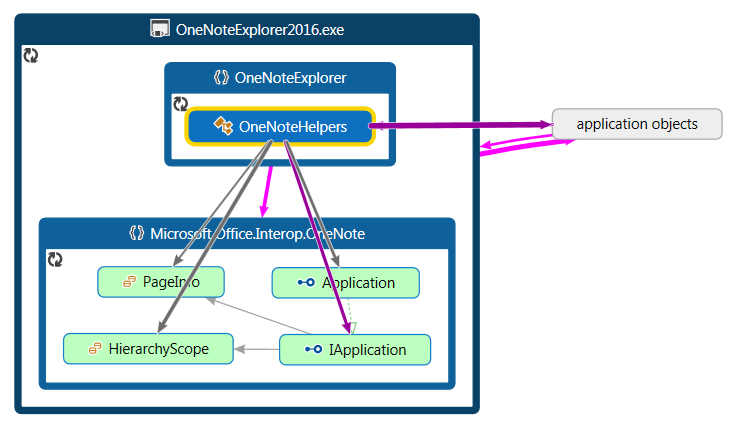

A static class (OneNoteHelpers) exposes several methods to communicate with OneNote API and create / update the view model objects as required:

 code map 1

Summary of methods exposed by the helper static class:

 onenote helpers

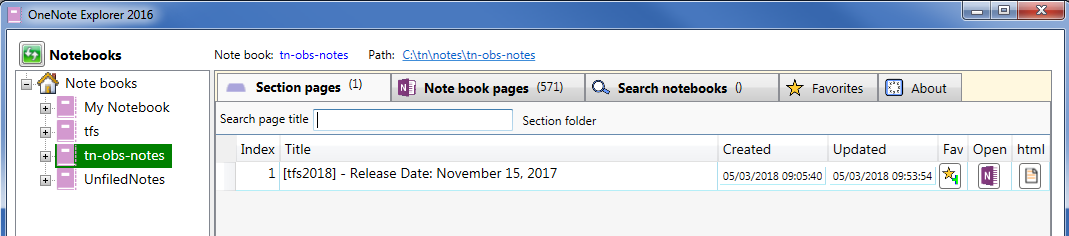

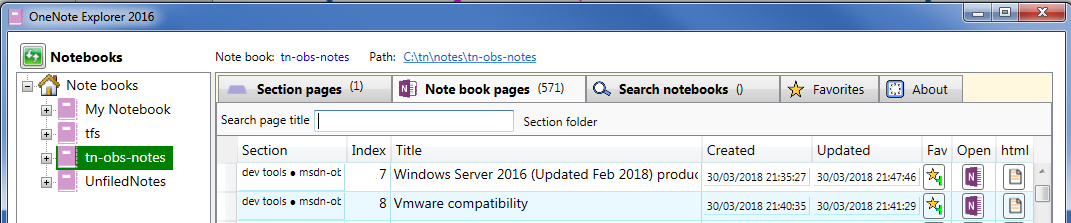

  • View selected section pages. Search titles, sort the datagrid, add page to favorites, open page in OneNote, html preview

feature 1

  • View all notebook pages. Search titles, sort the datagrid, add page to favorites, open page in OneNote, html preview

feature 2

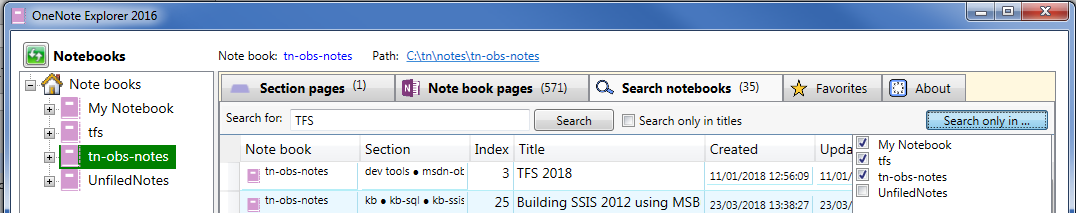

  • Search selected notebooks

feature 3

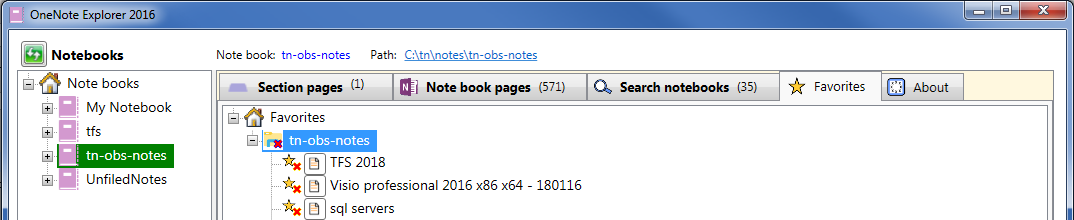

  • Manage favorites: delete, preview, open in OneNote…

feature 4

Page preview note

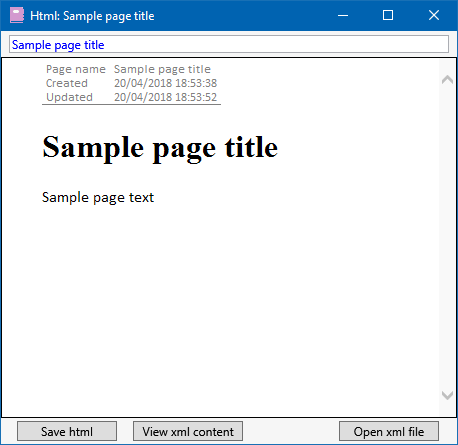

The application's Preview button displays the html content of the selected page. As OneNote API can return the page xml content, an xslt style sheet (with templates per each element type of the xsd definition) allows a simple and quick preview.

sample page

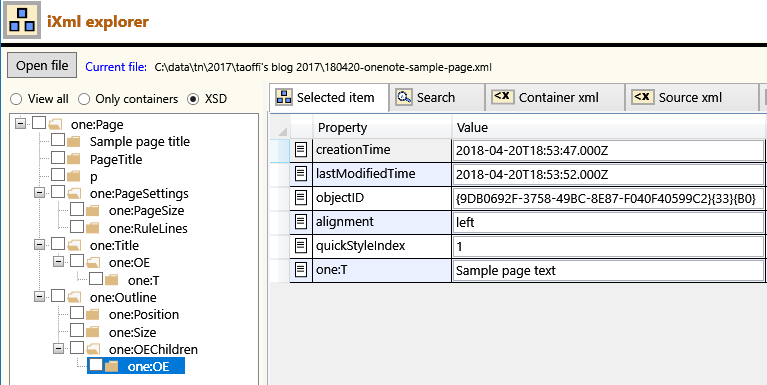

The simple page's xml tree

sample page's xsd

The page xml code

<?xml version="1.0" encoding="utf-8"?>
<one:Page xmlns:one="http://schemas.microsoft.com/office/onenote/2013/onenote"
         name="Sample page title" dateTime="2018-04-20T18:53:38.000Z"
<!-- ***************** quick styles ***************************** -->
<one:QuickStyleDef index="0"
                     font="Calibri Light"
                     fontSize="20.0" spaceBefore="0.0" spaceAfter="0.0" />
<one:QuickStyleDef index="1"
                     spaceBefore="0.0" spaceAfter="0.0" />
<!-- ********** page settings ********** -->
<one:PageSettings RTL="false" color="automatic">
<one:Automatic />
<one:RuleLines visible="false" />
<!-- ********** title ********** -->
<one:Title selected="partial" lang="en-US">
<one:OE author="taoffi" authorInitials="T.N."
            quickStyleIndex="0" selected="partial">
<one:T><![CDATA[Sample page title]]></one:T>
<one:T selected="all"><![CDATA[]]></one:T>
<!-- ********** page content (main <div>) ********** -->
<one:Outline author="taoffi"
<one:Position x="36.0" y="86.4000015258789" z="0" />
<one:Size width="123.9317169189453" height="14.64842319488525" />
        <!-- ********** paragra^ph ********** -->
<one:OE creationTime="2018-04-20T18:53:47.000Z"
         <!-- ********** paragraph text ********** -->
<one:T><![CDATA[Sample page text]]></one:T>


OneNote 2010 vs. 2013 and above

There are some compatibility issues between OneNote API for 2010 version and 2013 and above. More changes have been introduced in 365 version.

The downloadable binaries here are for OneNote 2013 and 2016 desktop.

You may download the binaries Here!

Yet another [rather simple] OpenXML package explorer!

As its name implies, OpenXML is XML-centric technology (i.e. which extensively uses XML to describe the meta-model and contents of each and every element of a document).

OpenXML documents themselves (MS Word, Excel, PowerPoint…) are compressed packages that include numerous xml files which describe the document's meta-models and contents.

To explore these items, you can simply rename the document file to .zip and then navigate through this zip archive to view the elements that may be of interest.

After proceeding this way, you of course must not forget to rename the file back to its original extension (.docx, .xlsx… or whatever). When working on an OpenXML project, you obviously have to do this so many times a day, which becomes a somehow daunting task!

Some very good tools exist to explore OpenXML documents' structures… but most of them expose a logical view of the document rather than an xml-centric view. Which is of course very helpful… but does not apply when you just need to see the physical structure and the xml content of meta-models and elements.

Moreover, most of these tools are somehow out dated (2007-2009…) and many simply crash on most of our 'modern era' OSs!

Add some other good reasons to write another explorer:

It is august, it is raining and I don't know what to do this week end (while listening to Maria Joao Pires playing Mozart Sonatas!)


The purpose and tools?

What I need is:

  • Open an OpenXML document as a zip archive (without having to rename it to .zip!)
  • Explore the content of the archive (folders / files)
  • Explore / search the xml tree of xml files that may be found there


Adding a reference to System.IO.Compression and System.IO.Compression.FileSystem, you can (relatively easily) present the archive tree structure like in the following image:

I created a view model layer to map my needs to the zip archive objects of the System.IO.Compression namespace:

iZipEntryVM: a view model for zip archive entry which offers some useful properties related to my purpose.

iZipEntryVmList: a collection of the above object which offers static methods to create the tree of a zip archive file as well as a 'selected item' property and selection change event.

iOfficeVM: (singleton) entry point ('main view model' in a way) that orchestrates the basic commands and selection change events.


XML property bags explorer, again, to the rescue!

I wrote in a previous post about using PropertyBags to explore xml nodes.

The xml explorer objects, methods and controls written during this research are now packaged into an independent library that can be referenced in the current project.

What I have to do is just wire the selection event of an item in the archive tree to the xml explorer objects.


That is, when I click an xml file on the zip archive tree, the selection change event is fired. If the selected item is an xml content, it is opened and its stream is sent to the xml explorer object to display the node tree.


In practice:

  • On the TreeView control's selection changed event, the SelectedItem of the view model collection (iZipEntryVmList) is set.
  • The collection fires its own Selection changed event.
  • iOfficeVM subscribes to that event and send the entry stream to the xml explorer:


_myArchiveList.SelectedItemChanged += _list_SelectedItemChanged

private async void _list_SelectedItemChanged(object sender, iZipEntryVM selectedItem)
    ZipArchiveEntry    entry    = selectedItem.ZipEntry;

     if(entry == null)
        await Task.Run(() => OpenXmlFile(selectedItem));


async void OpenXmlFile(iZipEntryVM entryVm)
    ZipArchiveEntry    zentry    = entryVm.ZipEntry;
    var        bagVm    = XmlExplorer.Instance.PropertyBagVM;

    if(bagVm != null)
        Stream            stream;
        await Task.Run(() =>
            stream        = zentry.Open();
            // this will build the xml nodes' property bag tree
            bagVm.SourceStream = stream;


Apart from presenting the xml nodes' tree, XML explorer offers some other useful features:

  • Search for content values and/or node names
  • View / copy the xml string of a selected node
  • Export (save) the current OpenXML item to a file.


And, not less important, I no more have to rename a file to do that…!

Some screenshots

Explorer General View

Sample search results


Binaries and source code

You may download the binaries here

You may also download the source code here.

XML – the ASCII of our era

At the dawn of XML, Tim Bray once said "XML is the ASCII of the future"… which is now clearly the case!


To ease reading and handling XML files, I started writing an XML browser last year. The 'Open file' menu of the app first proposed '*.xml' file extension.

As you may imagine, quite quickly that expanded to so many other file extensions: *.xml; *.xaml; *.xsd; *.wsdl; *.csproj; *.vbproj; *.dwproj; *.rptproj; *.config; *.dim; *.ds?; *.cube; *.partitions; *.manifest; *.database; *.rsd; *.rds; *.rdl the list is actually endless!

Why write a XML browser / editor?

Most XML tools I found look more like good (some excellent) editors / syntax visualizers. What I needed more was to have a logical image of the tree structure of an XML file: which node is parent of which…

Xml Note Pad did part of this but was more text-editor-oriented than logical structure visualizer. Its most recent version also dates 2007… time is running!

Of course there is not one sole way to handle such question. Visualizing the tree structure is one aspect. Editors with syntax highlighting, nodes expand/collapse… are still of course very useful.

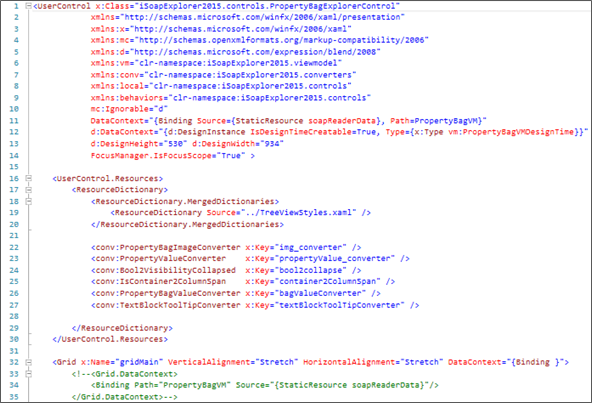

Let us take a simple user control xaml file with the code similar to this:

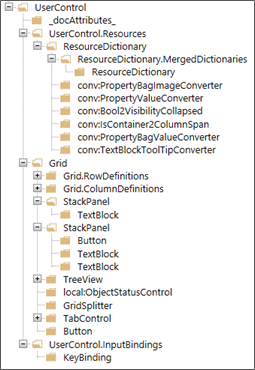

Viewing the above code's node tree helps better understand its structure:


How can we handle XML tree presentation?

XML code is composed of some foundation elements:

  • The element name (the xml tag… which is part of a namespace).
  • The element property (or properties). Which may be either:
    • A value (string / primitive type)
    • A composite element:
      • A set of attributes
      • And / or a set of child elements


A simple example:

<person gender="female">

Element = person, gender = an attribute whose value is female


firstname (property of person) whose value is Anna


lastname (property of person) whose value is Smith


End of the composite element person


The above code can also be written like this (1st attribute shifted to a property level):



You may look here for more information about the XML model.


At our .net level, we have objects defined in System.Xml.Linq that allow us to (more or less easily) explore, traverse and query a XML tree. Some of these:

  • XDocument (derives from à XContainer à XNode à XObject)
  • XElement (derives from à XContainer à XNode à XObject)


These xml-specialized objects are indispensable to safely communicate with the xml model, but are not good candidates for a view to represent the xml tree.

In some way, in a MMVM pattern, they represent the model (and business logic). We need an intermediate component that can be integrated into a view model and a view.

Property Bags to the rescue

I briefly mentioned property bags in a previous post about MSBuild browser. Let me elaborate a little more about this.

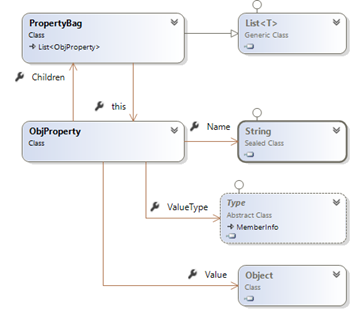

A property bag is a set of abstracted properties. Where a property is presented as:

  • A name
  • A data type
  • A value

And where the property 'value' can be either:

  • An object or primitive value (string for instance)
  • Or a set of properties (i.e. a property bag)


This model proved quite useful in many contexts. You may for instance transform any object into a property bag representing its properties (in a strongly-typed form). This can be quite useful in situations where loose coupling is a concern (applications ßà services for instance). I will talk about this in details later in a following post.


For our current question about presenting xml trees, property bag model seems to be in sync with the xml model:

Xml element:

name / value / attributes / sub-elements (children)

Property bag element:

name / value / sub-elements (children)


To clarify by the practice, here is an example for parsing a XElement attributes into a property bag:


static PropertyBag ParseXmlNodeAttributes(XElement xnode, ObjProperty parent)
    // create a property bag as a child of the parent property
    PropertyBag targetBag    = new PropertyBag(parent);

    // add the xml element attributes to the bag
    foreach (XAttribute attrib in xnode.Attributes())
        targetBag.Add(attrib.Name.LocalName, attrib.Value);

    return targetBag;


Parsing a XElement can be done in a few steps:

  • Create an ObjProperty with name = xml element's name
  • If the element's value is composite (attributes and/or child items): add element's attributes and children to the ObjProperty Children
  • Otherwise set the ObjProperty value to the element's value


The following code illustrates this (simplified version of the code for clarity)


public static PropertyBag ParseXml(XElement xnode, ObjProperty parent)
    string            propertyName    = xnode.Name.LocalName;
    PropertyBag    bagObject        = new PropertyBag(propertyName);
    ObjProperty    property            = new ObjProperty(propertyName);
    PropertyBag    bagAttributes    = new PropertyBag();
    PropertyBag    bagSubItems    = new PropertyBag();

    // get the XEelement attributes' bag
    bagAttributes    = ParseXmlNodeAttributes(xnode, property);

    // add attributes (if any) to Children
    if (bagAttributes.Count > 0)

    // add sub elements if any
    var        subNodes        = xnode.Descendants();

    foreach(var element in subNodes)
        string            nodeName        = element.Name.LocalName;
        PropertyBag    elementBag    = ParseXml(element, property);

        ExtractPropertyValue(bagSubItems, elementBag, nodeName, property);


    return bagObject;

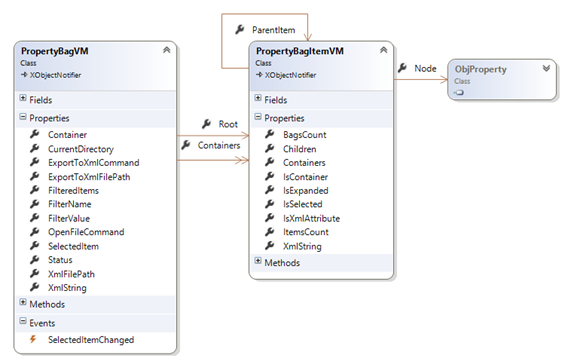

The Xml Property Bags' view model

Presenting a property bag in a view requires some additional properties that are specific for a view. For instance, an 'Expanded' property for a tree node, a 'Selected' property for an item, as well as useful commands and search/filter features… etc.

Our property bag view model will embed the bag item and adds such properties.


The Xml Property Bags' Views

We need to present our xml property bags in either a tree view or a grid view.

As I said earlier, a property bag item contains either a primitive value (which may be presented as a string) or a set of child items.

In a WPF tree view that can be presented like this (code simplified for clarity):

    <!-- import view model namespace -->

<TreeView x:Name="treeView1" ItemsSource="{Binding Containers}">

        <!-- hierarchial data template for containers items -->
                    DataType="{x:Type vm:PropertyBagItemVM}"
                    ItemsSource="{Binding Containers}" > <!-- Containers = property bags -->
            <StackPanel Orientation="Horizontal">
                <!—note: 'Node' is the property bag item -->
                <TextBlock Text="{Binding Node.Name}"/>

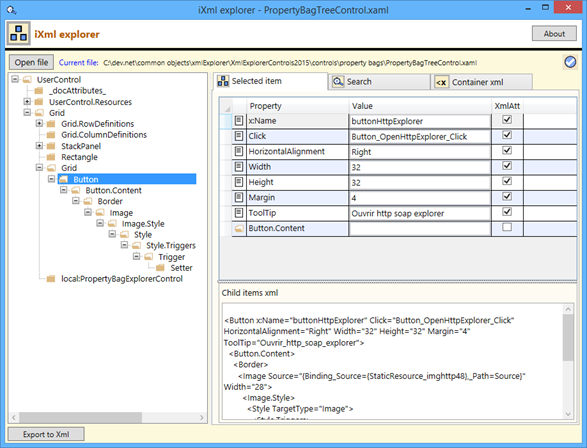

That results is a view that looks like the one at the beginning of this post (with an image added to the tree view item template)

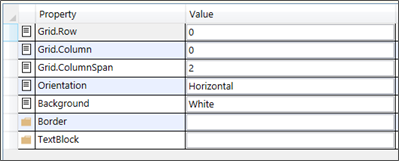

A data grid view may look like this (again: code simplified for clarity):


<DataGrid ItemsSource="{Binding }">
        <DataGridTextColumn Header="Property" Binding="{Binding Node.Name}" />
        <DataGridTemplateColumn Header="Value" Binding="{Node.ValueAsString}" />

For a xaml Stack Panel snippet element, our view may look like this (an image column added to the above simplified code):


With some more work, you may implement more useful features and visual effects.

The current version offers: Xml nodes Tree and Grid views, Search nodes (by name and / or value), get the selected node XML, Export the entire tree to an xml file… etc.



I stopped short from editing the nodes (names / values)… but you may add such feature (before I do… probably in a near futureJ)


Here is the current version's binaries.

Have fun adding new features to the source code if you would like to.
