Revealing object properties

System Attributes can be used to simply tag and retrieve object properties and methods in particular context.

In my case here, I wanted to be able to know which properties are contained in objects in order to be able to dynamically assign or change their values using simple text entries in a database.



I created an (empty) Attribute and named it xSysPropertyAttribute:



[global::System.AttributeUsage(

             AttributeTargets.Property,

             Inherited = false,

             AllowMultiple = true)]

public sealed class xSysPropertyAttribute : Attribute

{

       public xSysPropertyAttribute()

       {

       }

}



I then used this attribute to ‘tag’ the desired objects’ properties:



[xSysProperty]

public bool BoolProperty

{

       get { return m_bool_property; }

       set { m_bool_property = value; }

}



[xSysProperty]

public string StringProperty

{

       get { return m_string_property; }

       set { m_string_property = value; }

}



Using System.Reflection, I, now, can retrieve these properties and dynamically list them:



foreach (PropertyInfo p in obj.GetType().GetProperties())

{

       bool   has_sys_attribute   = Attribute.IsDefined( p, typeof(xSysProperty), false);



       if(has_sys_attribute)

       {

             // Do something with this property

       }

}



We can use this simple code to dynamically build lists of object’s (tagged) properties.

Once the list of the desired properties has been built, we can now read and modify their values (using user input, xml, text files or database records):



Example of Read the property’s value:



public object GetValue(MyObject obj, string property_name)

{

       if( obj == null || string.IsNullOrEmpty( property_name))

             return null;



       PropertyInfo pinfo  = this[property_name];



       if( pinfo == null)

             return null;

       return pinfo.GetValue(obj, null);

}



Example of Set the property’s value:



public bool SetValue(MyObject obj, string property_name, object value)

{

       if( obj == null)

             return false;



       PropertyInfo pinfo  = this[property_name];



       if(pinfo == null)

             return false;



       // is this a readonly property?

       if(pinfo.CanWrite == false)

             return false;



       // get the property's data type

       Type   property_type = pinfo.PropertyType;

       object new_value;



       try

       {

             // try to convert the given value to property's data type

             new_value    = Convert.ChangeType( value, property_type);

       }

       catch (Exception)

       {

             return false;

       }



       try

       {

             // try to assign the converted value to the object

             pinfo.SetValue( obj, new_value, null);

       }

       catch (Exception)

       {

             return false;

       }



       return true;

}



Still we have another problem: we need a solid link between listed properties and the objects on which we may get and set properties’ values. i.e. we need to be sure that a property is actually part of the target object without having to check this each time a get or set is requested.

Here comes one the benefits of template classes.

We can implement our pattern using a template list like the following:



public class xBuiltinPropertiesListBase<PROPERTY, OBJ_TYPE, PROPERTY_SYS_ATTRIB>

             : List<PROPERTY> where PROPERTY : PropertyInfo



The code above defines a list template that will contain objects of type PROPERTY and that type should be a PropertyInfo (or one derived class)

It also defines that for the list to be initialized, a class (System.Type) OBJ_TYPE and a System Attribute PROPERTY_SYS_ATTRIB should be provided.



This way, our list explicitly integrates the Type on which it will operate.

Providing the System Attribute may also allow extending the list template for future use in other contexts.



On list initialization, the template will proceed to listing all properties with the attribute PROPERTY_SYS_ATTRIB defined within the class of OBJ_TYPE:



public bool LoadClassAttributeProperties()

{

       Clear();



       Type   obj_type     = typeof(OBJ_TYPE);



       // loop through all class's properties.

       // insert those properties defined with the specified System.Attribute.

       foreach (PropertyInfo p in obj_type.GetProperties())

       {

             // Does this property define our System.Attribute?. add it to the list.

             bool   has_sys_attribute = Attribute.IsDefined( p,

                                        typeof( PROPERTY_SYS_ATTRIB), false);



             if(has_sys_attribute)

             {

                    PROPERTY     new_property = (PROPERTY)p;

                    Add(new_property);

             }

       }



       return true;

}





The above GetValue and SetValue methods will also have to be slightly modified before being integrated in the list template. Example:



public bool SetValue(OBJ_TYPE obj, string property_name, object value)

{

       if( obj == null)

             return false;



       PROPERTY     my_property  = this[property_name];



       if( my_property == null)

             return false;



       // is this a readonly property?

       if( my_property.CanWrite == false)

             return false;



       // get the property's data type

       Type   property_type = my_property.PropertyType;

       object new_value;

       ...

       ...






Download the sample code ExtensibleObjectProperties.zip (46.35 kb)





Invoking methods by name. A first approach

As many developers know, one of the interesting namespaces in .NET is System.Reflection.

Here I try to use Reflection to invoke loaded assemblies’ methods by their names. This can be quite useful for applications like storing menu or button actions in a database and bringing them to life during runtime (I will post something about this subject shortly).

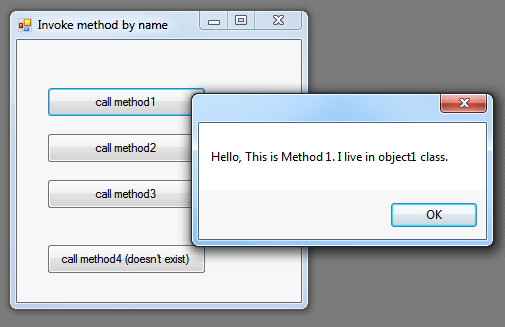

The attached test application demonstrates this in a very simple manner. Each dialog button invokes a method defined somewhere in the loaded assembly using its name. The search is done by few methods in MethodFinder static class.



The dialog displays 3 buttons. The OnClick handler for each button invokes a method by its name:

private void button1_Click(object sender, EventArgs e)

{

       invoke_method("Method1");

}



private void button2_Click(object sender, EventArgs e)

{

       invoke_method("Method2");

}



The invoke_method function, calls a method finder to retrieve the method and, if found, invokes it:



private void invoke_method(string method_name)

{

       MethodInfo          method       = MethodFinder.FindMethod(method_name);

       string              str_result   = "";



       if (method != null)

       {

             str_result = method.Invoke(this, null).ToString();

             MessageBox.Show(str_result);

       }

       else

             MessageBox.Show("Couldn't find method in loaded assemblies");

}



What you should know

You probably know that a .NET assembly is composed of modules (generally just one module), each module is composed of classes (Types) and each class is composed of fields, properties and methods.

The MethodFinder.FindMethod function loops through runtime loaded assemblies, modules and classes to search for the method and return the found method if any.



FindMethod function:

public static MethodInfo FindMethod( string method_name)

{

       foreach (Assembly asm in AppDomain.CurrentDomain.GetAssemblies())

       {

             method = FindAssemblyMethod( asm, method_name);

             if( method != null)

                    return method;

       }

       return null;

}



FindAssemblyMethod function loops through assembly’s classes:

public static MethodInfo FindAssemblyMethod(Assembly asm, string method_name)

{

       MethodInfo   method;



       foreach (Module module in asm.GetModules())

       {

             method = FindModuleMethod( module, method_name);

             if( method != null)

                    return method;

       }

       return null;

}



As you have already guessed, FindModuleMethod function loops through module’s classes to search the method:

public static MethodInfo FindModuleMethod(Module module, string method_name)

{

       Type[]       module_types;

       MethodInfo   method;



       module_types = module.GetTypes();



       foreach (Type module_class in module_types)

       {

             method = FindClassMethod( module_class, method_name);

             if( method != null)

                    return method;

       }



       return null;

}



Finally FindClassMethod searches for the method inside the class’s available methods:

public static MethodInfo FindClassMethod( Type module_class, string method_name)

{

       MethodInfo[] methods;



       methods = module_class.GetMethods();

       foreach (MethodInfo method in methods)

       {

             if( string.Compare( method.Name, method_name, true) == 0)

                    return method;

       }



       return null;

}



This is a first approach that I believe that many useful applications can be built on.

I will expose some ideas on the subject in a next post.



Download the sample code (with some more details inside) InvokeMethodByName.zip (30.31 kb)
