Back to earth: DBNull and ConetxtMenuStrip target TreeView node



It is time now to set concepts aside for some more practical problems!

Last days, through the work on two different projects, I encountered DBNull twice, and faced a funny problem about locating the target TreeNode of a contextual menu!

Let us start by the first one:

DBNull in Silverlight and Windows Forms

I encountered a DBNull problem two times (in three days… that seems a bit much). The first time was in the context of a WCF service intended to feed a Silverlight application, and the second was in the context of a GridView control in a Windows Forms application.
For your information, DBNull is a .NET Type defined in namespace System (mscorlib.dll).

The first issue emerged with what appeared to be a communication problem between a Silverlight application and one related WCF service. After some research, DBNull was reported to be an unknown Type in XML serialization. The service was transmitting data read through a SQL Server database… We had a Cell class. Its Data member was an object.
A bit more research made it visible that the following code as the source of the annoyance:

cell.Data = data_reader.GetValue(cell_index)



In fact, when the field at cell_index was null, data_reader.GetValue() returned DBNull. Which was assigned as the cell’s Data. Serialized by WCF, DBNull was not recognized by the receiving Silverlight application.

Though the time needed to discover the source of the problem was quite long, the solution was quite simple:



cell.Data = data_reader.IsDBNull(cell_index)

                  ? null :data_reader.GetValue(cell_index)

// Which clearly means:

if(data_reader.IsDBNull(cell_index))

    cell.Data = null;

else

    cell.Data = data_reader.GetValue(cell_index)

Now that the cell content is null, everything goes right (because null is a recognize Type).
It will be a great day when DBNull (which implements the ISerializable Interface) will simply be serialized as null… let us just wait.

Yet another DBNull problem!

Once the Silverlight DBNull problem solved… precisely: the next day J, I just found myself again confronted by another DBNull. This time in a Windows Forms application.
In this new case, I had a DataGridView control which was filled using a DataTable and I wanted to programmatically add a row to those displayed in the DataGridView control.
Obtaining the row’s data was simple (calling a web service or by directly querying a database).
The task was then to add the obtained data as a new row of the DataTable used as the source of the control. The problem was again related to the cells containing null values in the new added row.

In fact, if you assign the row’s cells data through a DataRow object you may not have a particular issue. Issues appear when you try to assign an object’s properties values to the row cells.

In this particular case, we had an object with some properties of nullable types: for instance int?  parent_id. The code below generated an error:

DataRow row = table.NewRow()

row["parent_id"] = obj.parent_id;  // an error here when obj.parent_id == null

Some solutions are proposed in several forums. They mainly propose to handle some special events of the DataGridView (like DataError event) and/or play with custom interpretation of DBNull…
The solution I used seems more simple. It is based on the fact that when the row was created (using table.NewRow() method) it contained all required cells… each of which, a priori, filled with something (a sort of ‘null’ thing… we don’t really care about its type). So, we simply may assign cell values only if the data to be assigned is NOT null:

DataRow row = table.NewRow()

if( obj.parent_id != null)

       row["parent_id"] = obj.parent_id;

That seems to work!

Contextual menus… yes! but where is the target node?

TreeView control is a nice and useful control to show many data domains.
One nice and efficient thing of TreeView control is that it allows the developer to handle many aspects of tree nodes by their level in the tree hierarchy. You can for instance choose the icon of items according to their nest level in the tree hierarchy
Among the customizations you can do is to choose a specific contextual menu for each hierarchy level… very cool and simple to do.
When the user right clicks a node in the tree, he or she would see the assigned contextual menu and be able to execute operations in relation to the type of the node.
The thing is, when a menu is clicked, you developer should find out which node was selected when this menu was clicked… Curiously, this is not as simple as we may expect.

I naively thought, a contextual menu object will contain some relevant information about its Target object (in our case: the target Node)… unfortunately this was not true!
So, you simply find yourself with a command to execute (the menu clicked)… but don’t know on which object of the tree should you execute this command!
Few solutions are proposed to solve this problem, and none, of what I read, seemed sustainable.
Here again, we should ‘reinvent the wheel’…

Reinventing the contextual wheel!

The problem seems to be: “Locating the target tree node”. The problem’s definition starts by “Locate”… so let us think “location”.
I first started by trying to locate the mouse cursor at the moment of the click event (using MousePosition which returns the point of the current mouse position in screen coordinates)… but that seemed random, not always related to the node position (and also quite difficult to debugJ).
The next step was to think “location of controls”.
In fact, a contextual menu is a control and as such, it should have a location… hopefully relative to its parent control (which is the TreeView).
Our Click event is received from a contextual menu item (ContextMenuStrip object) which is located into a parent control (the contextual menu box), itself is a child control of the TreeView control containing the node.

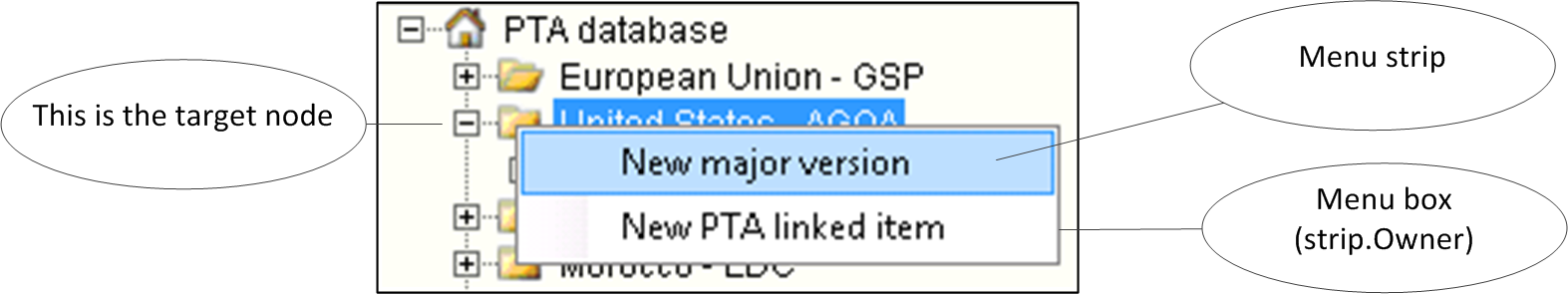

The following figure illustrates this disposition



The Owner property of the menu strip contains its parent menu control information. Through this information, we are able to obtain the location of the menu box, and thus, the location  of the first menu strip relative to the TreeView control. With some more simple arithmetic, we can finally locate the right-clicked node (the target node) using the TreeView control GetNodeAt(Point point) method :





static TreeNode LocateContextMenuTargetNode(

             TreeView            tree_view,

             ToolStripMenuItem   menu_item)

{

       // check entries

       if( tree_view == null || menu_item == null || menu_item.Owner == null)

             return null;



       ToolStrip           menu  = menu_item.Owner;

       // top most menu item

       ToolStripMenuItem   first = (ToolStripMenuItem) menu.Items[0];



       // obtain the enclosing rectangle of the menu box

       Rectangle           menu_rect   = menu.RectangleToScreen(menu.ClientRectangle);

       // obtain the rectangle relative to the TreeView control

       Rectangle           tv_rect     = tree_view.RectangleToClient(menu_rect);

       // obtain the optimal point that corresponds to the right-clicked node

       Point               point       = newPoint(

                                    first.ContentRectangle.X + tv_rect.X,

                                    first.ContentRectangle.Y + tv_rect.Y);



       // finally, get the right-clicked node

       return tree_view.GetNodeAt(point);



}



 That works fine for contextual menus with few elements and in a ‘normal’ screen resolution.
If the contextual menu contains many items, the first item may be quite far away from the target node!...So, what?
Let us look for a more sustainable way to locate our item… we may again, rethink ‘mouse location’!

In this solution, we will keep track of the current ‘right-clicked node by responding to the MouseDown event of the TreeView.


TreeNode     m_context_menu_target_node;

void treeView1_MouseDown(object sender, MouseEventArgs e)
{
    // if this is not a right-click: do nothing
    if (e.Button != System.Windows.Forms.MouseButtons.Right)
    {
        m_context_menu_target_node = null;
        return;
    }

    Point point = e.Location;

    m_context_menu_target_node = treeView1.GetNodeAt(point);
}



Now, when a contextual menu is clicked, we can first see if the target node is not null… execute the command and reset the target node to null (until the next time):


       TreeNode node = m_context_menu_target_node;

       if (node == null)
             return;

       // reset the target node to null
       m_context_menu_target_node = null;

       // execute the command on the node





Silverlight database to DataGrid, yet another approach- Part V

The data record (the ‘form’)

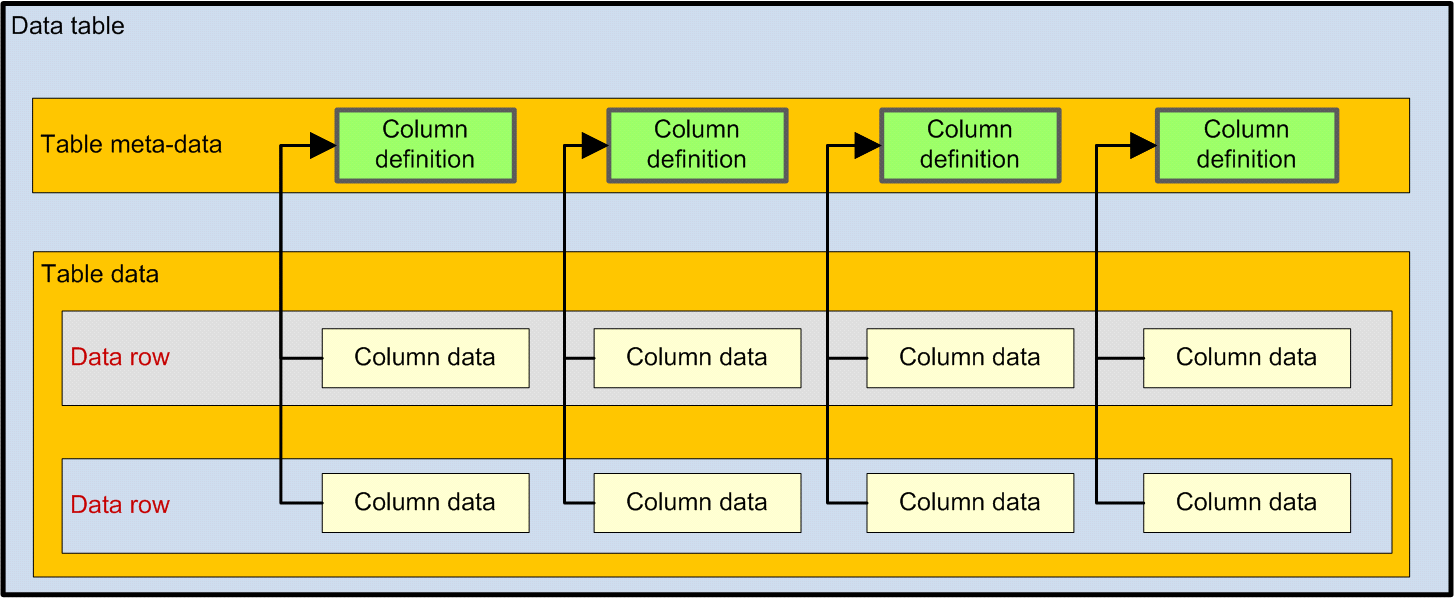

As I mentioned in Part II, my proposed solution (aimed to transfer and communicate data between a Silverlight Client and the database server) is composed of the following schematic classes:

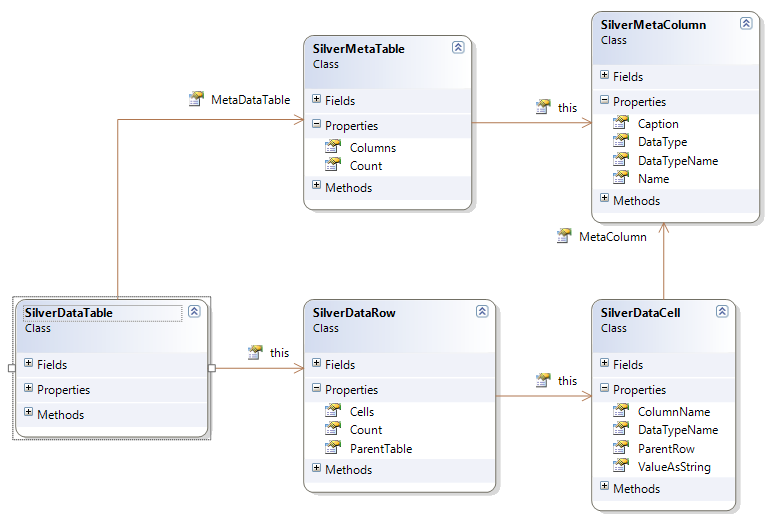

Data level classes

SilverDataTable

Represents the table (or view, or function…) data.

Contains:

A meta-data table

A list of data rows

SilverDataRow

Represents one record of data.

Contains:

List of data cells

Linked to:

A parent table

SilverDataCell

Represents one record’s data cell.

Linked to:

A parent row

A parent meta-data column

Meta-data level classes

SilverMetaTable

Represents the table’s meta-data (schema)

Contains:

A list of meta-data columns

Linked to:

A parent table

SilverMetaColumn

Represents one column’s schema information.

Note: This is the ‘Key Class’ where you can insert all your required business logic.

Linked to:

A parent meta-data table



The SilverMetaColumn class is the key class which will transport many of business logic information from the database server to the client (and back to the server).

A meta-data column object of this class can transport information like:

§  The column’s data type;

§  Can the column contain null value?

§  The semantic type of the field (ex: control type… i.e. is this an option list? a value entry field?…)

§  Valid value ranges;

§

§  etc.



What I want to expose here is: how to use this meta-data column object to ‘automatically’ (or semi-automatically) compose a data record (form) on the client side.



From the field semantic àto the control àto the form

After having examined many of the data entry forms in various contexts, I think that a data entry (from the user interface point of view) is either:

§  A value entry control (i.e. a TextBox or TextBox-like: Numeric Up-down control for example)

§  Or a choice control (i.e. a ListBox, ComboBox, CheckBox, Radio-buttons-collection or other type of collection container controls)



Of course, the visual aspect of the control and its interactivity scenario may vary… but its presentation-semantic remains the same: a value entry or a choice.

From the business logic point of view (at the server side), what is important is not the visual aspect or visual transitions for presenting and collecting the data. What is important is the conformance of the collected data to specific business logic constraints:

§  Does the entry conform to the required data type?

§  Does the entry conform to the required valid range?

§



According to this approach, we can imagine a solution where the server tells the client:

§  Here is the requested data record composed of:

§  Column 1 : this is the record key column, It is Read-only (i.e. it will be handled at the server)

§  Column 2: this is an entry of data type Text, Required (cannot be null), cannot exceed 50 characters, Current value is “sample entry”;

§  Column 3: this is an entry of data type integer, Can be null, Valid range is 0 through 40, Default is 25, Current value is 32;

§  Column 4: this a single choice of the following option list (x1, x2, x3), Cannot be null, Current value is x2;

§  Column 5: this a boolean value, default is True, Current value is False;

§



Receiving this information, the client can then undertake the presentation process, for example:

§  Start record presentation transition (animation);

§  For each column, create the corresponding control (ex: according to the user interface graphical chart);

§  Set each control’s properties to conform to business constraints (read-only, max chars, valid values check… etc.)

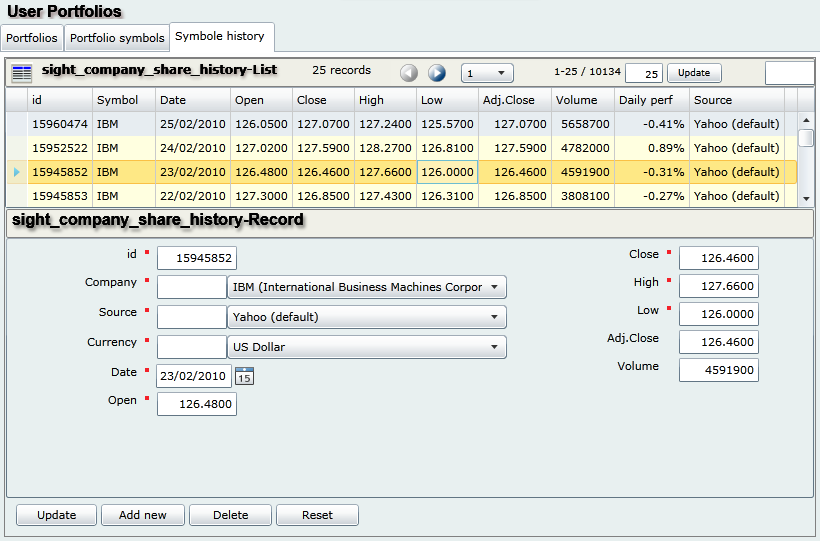

Here is an example of a solution using this approach:



Silverlight database to DataGrid, yet another approach- Part IV

Filtering database data

As we have seen in Part III, the SQL Select statement is composed of the following parts:

SELECT                 [field1], [field2],… [fieldn]

FROM                   [database table or ‘table-like’ store]

WHERE                [conditions]

ORDER BY           [field name] <sort direction>,

                               [field name] <sort direction>



It is the ‘WHERE’ clause of the SQL statement that is used to filter the data.

‘WHERE’ is followed by ‘conditions’. Several conditions are concatenated using AND or OR operator.

What is a filter condition?

A ‘condition item’ can be presented as:

[Field name] [Comparison operator] [Filter value]



A collection of ‘condition items’ can be presented as something like:

<Condition item> <Concatenation operator> <Other condition item>



Examples:

Name = ‘John’

Amount >= 100

(Last_name LIKE ‘%bama’) AND (Age >= 20)



That seems easy to be represented by an object:

public class SilverFiltertItem

{

       string              m_field_name,

                           m_filter_value;

       CompareOperator     m_compare_operator  = CompareOperator.EQUAL;

       ConcatOperator      m_concat_operator   = ConcatOperator.AND;

       ...

       ...

The concatenation and comparison operators are members of the following enum types:

public enum filter_concat_operator

{

       and,

       or,

       none

};



public enum filter_compare_operator

{

       Equal,

       Not_equal,

       Like,



       GreatertThan,

       GreatertThanOrEqual,

       LessThan,

       LessThanOrEqual

       ...

       ...

};



Two properties can give us the Compare and Concatenate strings when required:

protected string ConcatString

{

       get

       {

             if( m_concat_opertaor == filter_concat_operator.none)

                    return "";



             // return ‘AND’ or ‘OR’

             return Enum.GetName( typeof( filter_concat_operator), m_concat_opertaor).ToUpper();

       }

}



protected string CompareString

{

       get

       {

             switch (m_compare_operator)

             {

                    case filter_compare_operator.Equal:

                           return "=";



                    case filter_compare_operator.Like:

                           return " Like ";



                    case filter_compare_operator.Not_equal:

                           return "!=";



                    case filter_compare_operator.GreatertThan:

                           return ">";



                    case filter_compare_operator.GreatertThanOrEqual:

                           return ">=";



                    case filter_compare_operator.LessThan:

                           return "<";



                    case filter_compare_operator.LessThanOrEqual:

                           return "<=";



                    default:

                           throw new Exception("Unknown Compare opertor encoutered!");

             }

       }

}



The FilterItem object can now provide us with its SQL string through a property like the following:

public string SqlFilterString

{

       get

       {

             if( string.IsNullOrEmpty(m_filter_value)

                           || string.IsNullOrEmpty( m_target_column_name))

                    return "";



             string       field_name   = "[" + m_target_column_name + "]",

                          str_ret      = ConcatString + "(";



             string str_value    = m_filter_value;



             str_ret      += field_name + " " + CompareString + " " + str_value + ") ";

             return str_ret;

       }



A filter collection class may look like this:

public class SilverFilter : List<SilverFilterItem>

{

       ...

       ...



The filter collection can return the entire SQL filter string through successive calls to its member items:

public string SqlFilterString

{

       get

       {

             if( Count <= 0)

                    return "";



             int    ndx          = 0;

             string str_ret      = "";



             foreach (SilverFilterItem f in this)

             {

                    if (ndx <= 0)

                           f.Concat_operator = filter_concat_operator.none;

                    else

                    {

                           if( f.Concat_operator == filter_concat_operator.none)

                                  f.Concat_operator   = filter_concat_operator.and;

                    }



                    str_ret      += f.SqlFilterString;

                    ndx++;

             }



             return str_ret;

       }





Our DataTable object (see previous posts) can now include a Filter collection object and construct the SQL Where clause:



protected SilverFilter    m_filter     = new SilverFilter();

...

...



public string SqlCommand

{

       get

       {

             ...

             ...

             string       str_cmd      = "SELECT * FROM " + m_table_name;

             string       str_sort     = m_sort.StrSql;

             string       str_filter   = m_filter.SqlFilterString;



             if( ! string.IsNullOrEmpty( str_filter))

                    str_cmd      += " WHERE(" + str_filter + ")";



             if( ! string.IsNullOrEmpty( str_sort))

                    str_cmd      += " ORDER BY " + str_sort;



             return str_cmd;

       }



Note: a better approach would, of course, be to map the filter field names to the table’s meta-data table fields… or directly use MetaDataTable’s columns as filter members (instead of using field names as strings). In this last case, we would be able to check columns’ data types and also act more closely to database’s business logic.



In other words: what is proposed here is a simple approach that can evolve according to your needs.





You can download the sample code: SilverDbDataGrid-2-sorting&filtering.zip (1.87 mb)

Silverlight, Back to basics: the User Interface!

Intro…

I wanted to post a new article in the series about Silverlight (client) and server’s databases. The subject of the article was ‘data forms in Silverlight’. But, because a ‘Data Form’ is the ultimate place where the user directly interacts with the data, and where the concrete sense of a ‘rich user interface’ comes to life… I finally preferred to begin by discussing one of the basic questions: the User Interface (GUI, UI… as it got so many titles and names through the time!)

The UI frontiers

Where does the UI sit inside the entire image of a software project?

Are there any definitive… (kind of ‘waterproof’) frontiers between the UI tasks and the rest of the software project’s tasks?

There is, occasionally, some confusion about this subject. Software industry literature teaches us how to separate ‘objects’ from their ‘presentation’ (‘data’ from ‘views’). But does this mean that building a User Interface should be done in a separate bureau (or on the beach)?...

Although no literature ever discussed the question, such a simplistic approach is applied in some projects in the real world. The concept of separating objects from their presentation is sometimes applied in the form of separating the development processes: Object tasks vs. UI tasks, Object modules vs. UI modules, Object workers vs. UI workers!

Although each task, in any project, has particular skills and knowledge requirements, the success (or failure) of the entire project obviously depends on the global understanding, at all levels, of what the final product is and how its parts articulate.

What is the ‘User Interface’?

To avoid taking the risk of giving a formal definition of what a user interface is, let’s try to define what the user interface’s role is.

In most cases, software solutions propose automated (accelerated) tools for accomplishing well-known human tasks. Most of these tools run using some new ‘media’ (screens, keyboards, mice… etc.). This context implies new ways for representing tasks’ items and new ways for manipulating (processing) theses items. The initial presentation approach was, naturally, to mimic the ‘real world’ way of presenting and manipulating the task items (remember the too large accountancy book displayed on the too small screen… that was probably when the scroll bars have been invented!). Many of today’s iconic presentations still use this approach (just have a look at a ‘button’ and its press/release interaction!)

Presentation (and human-machine interaction process) is largely related to the social and cultural context in a given period or era (objects we use, fashion and elegance trends…). The advent of software and its related objects (virtual and/or material) also affects and participates in the evolution of this cultural and social context. That is why, I think, that a successful user interface is achieved when we mimic the ‘real world’ objects and processes to some extent and, in the same time, instigate new (futuristic) objects and processes (obviously, what may seem ‘futuristic’ today will sooner or later become outdated!).



Anyway, if we may admit that user interface is, briefly, about presenting data through visual graphical objects (controls), then, many new things have to (will) be done at this level!

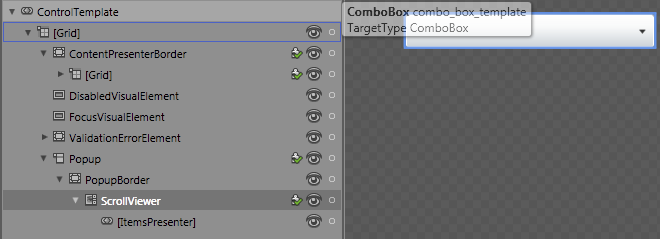

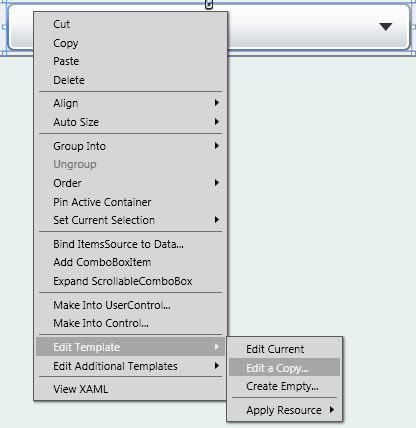

For example, take the ComboBox: which is basically a selection list of items. With the time going, a selection list can now have several thousands of items… may be we now need a ‘paged combo-box’?... or may be a brand new control to make the selection process easier, faster, less cumbersome…

Many interesting work have been done to solve this kind of concrete problems (you may have a look at some ‘virtualization’ approaches here, here and/or here) fewer have been done for inventing new UI objects (since how many years do we still use: the button, the text-box, the list/combo-box…?)

UI role

From a functional point of view, data presentation (User Interface) role may be summarized as:

§  Give access to different data areas (through menu commands, for example);

§  Show the data;

§  Let the user interact with the data (modify, add, delete…);

§  In some cases, validate the data;

§  Send the updated data back to the data store (server).



In these tasks, the user interface makes use of:

§  Controls to present the data;

§  And transitions (animations or animation-like, between presentation and processing stages).



The success of user interface (in a given era!) is mainly related to the best (harmonious) choice of controls and transitions according to each context of data presentation and/or processing stage.

Silverlight (and WPF) added value

One of the most interesting aspects of Silverlight (and WPF) is that it doesn’t imprison you in a special form of any of its proposed controls. You can, for example, reformat, entirely or partially, the proposed ‘traditional’ ComboBox to make it present the data and behave the way you want. You can, of course, invent something new.

UI controls… the server choice

A UI control presents data. The data is stored and ultimately validated and processed at the server side. So, at the client side, the presented data has a semantic aspect and a presentation (visual) aspect. Although we cannot pretend of any strict rule (valid for all contexts), the data semantic aspect should better be defined at the server side. i.e. questions like: is this a read-only, read/write data?, can the value be omitted (nullable)?, should the value be one of specified choice list items?... etc. should better be defined at the server-side.

The presentation visual aspect (and transitions) should logically be defined at the client side (the UI module).



How can we setup and manage the relationship between the data semantic/visual aspects?

Again, there no ‘all purpose’ rule!

I will present some work on this subject in a following post.

Silverlight database to DataGrid, yet another approach- Part III

Sorting and filtering database records

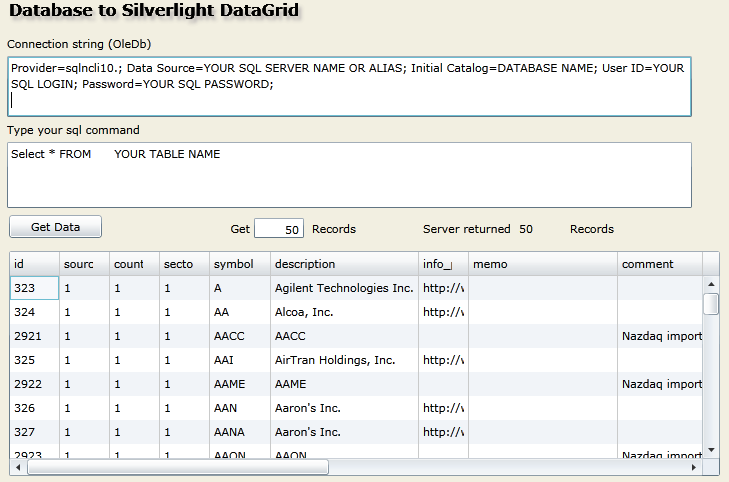

After having succeeded to display our server data into Silverlight DataGrid (see previous post), we will now continue the adventure to complete our solution with some useful and necessary features that Silverlight DataGrid originally proposes (for example, sorting records) and add some new features for filtering records.



Silverlight DataGrid allows the user to sort displayed rows by clicking into column headers.

That is nice and helpful. But, in the context of data provided by a server through a database, that doesn’t seem to be quite a correct approach.

In fact, in such context, if you click to sort a column in the ascending order, the displayed data records may not contain the entire values stored in the database. The data should be ‘refreshed’ to represent the effective sorted values according to currently stored database data in its entirety.



Sorting database data

How database data can be sorted?

The answer: this can be done using the SQL ‘ORDER BY’ clause.

We use SQL to query the data according to the following (simplified) statement template:

SELECT                [field1], [field2],… [fieldn]

FROM                  [database table or ‘table-like’ store]

WHERE                [conditions]

ORDER BY           [field name] <sort direction>,

                            [field name] <sort direction>



The ORDER BY part, contains a list of field names (each of which should be one of the listed SELECT fields, or, at least, one of the queried table or ‘table-like’ fields)

Each field in the ORDER BY clause can have a specified sort direction (ASC for ascending, or DESC for descending). The default being the ascending direction (if the direction is omitted)



If we have to represent an ‘order by’ item as an object, the object may then be something like this:

public class SortItem

{

       string       m_field_name;

       SortDirection m_direction  = SortDirection.ASC;

       ...

       ...



So, in our case, we can simply sort our DataGrid by building a list (List<SortItem>) of clicked column names (met-data column names) and passing them to the server to compose the ORDER BY part of the query accordingly and return too us the desired sorted data.



Implementing the solution

Let’s begin, at the server side, by enriching our service’s SilverDataTable (see Part II) object by a new SortList object, which will simply be a List<> of SortItem.



public enum sort_direction

{

       asc,

       desc,

       none

};



A SortItem object can be defined as follows:



[DataContract]

public class SilverSortItem

{

       protected string           m_target_column_name       = "";

       protected sort_direction   m_sort_direction    = sort_direction.asc;

       ...

       ...



We can now define a sort-list object which is mainly a List<SilverSortItem > that takes care for some constraints like, for example, not adding duplicate fields:



public class SilverSort : List<SilverSortItem>

{



The class exposes an indexer that returns the field by its name:

public SilverSortItem this[string field_name]

{

       get

       {

             if( string.IsNullOrEmpty( field_name) || Count <= 0)

                    return null;



             foreach (SilverSortItem e in this)

             {

                    if( string.Compare( e.Target_column_name, field_name, true) == 0)

                           return e;

             }

             return null;

       }



An Add method, to add or modify settings of an existing sort field:

public new void Add(SilverSortItem element)

{

       if( element == null || string.IsNullOrEmpty( element.Target_column_name))

             return;



       SilverSortItem      e      = this[element.Target_column_name];



       if( e == null)

             base.Add( element);

       else

             e.CopyOther( element);

}



And a property that returns the SQL sort string of the contained fields:

public string StrSql

{

       get

       {

             if (Count <= 0)

                    return "";



             string str_ret = "";



             foreach (SilverSortItem s in this)

             {

                    if( str_ret.Length > 0)

                           str_ret      += ", ";



                    str_ret += s.StrSql;

             }

             return str_ret;

       }

}



Let’s now include a Sort list into our SilverDataTable class:

[DataContract]

public class SilverDataTable

{

       protected SilverSort       m_sort = new SilverSort();





We can now extend our SqlCommand property to include the sort string:

string str_sort     = m_sort.StrSql;



if( string.IsNullOrEmpty( str_sort))

       return "SELECT * FROM " + m_table_name;

return "SELECT * FROM " + m_table_name + " ORDER BY " + str_sort;



We will also change our WCF service method to include an optional list of sort field names:



[OperationContract]

public SilverDataTable GetData(string str_connet_string,

                           string str_sql_command,

                           SilverSort sort_items,

                           int n_records)





Sorting… the Client-side job

At the client-side, our DataGrid should send us a message each time a column should be added to the SilverDataTable sort list. And, unfortunately, that is not as ‘intuitive’ as we may like!

Manish Dalal published a very interesting paper about custom sorting and paging inside a DataGrid. His work presents a good (and extensible) start point.

The usable part of his work in our project is the CollectionView class which can give us more control on sorting in response to DataGrid Column Click events.

As you may see at Bea Stollnitz interesting blog, Silverlight DataGrid internally uses a CollectionViewSource (an object that implements ICollectionView interface).

That is: When we set DataGrid’s ItemsSource to an observable collection, it integrates it into its own ICollectionView object.

Fortunately, the DataGrid is smart enough to let us implement this object ourselves, i.e. if we set its ItemsSource to an object that implements the ICollectionView, the DataGrid will use this instead of its own one.

So, let’s create a class that implements the ICollectionView:

public class SilverCollectionView<T> : ObservableCollection<T>, ICollectionView

{



The ICollectionView exposes a collection of ‘SortDescriptions’ that we will use, for the requirements of our project, as a list of field names to be sorted. i.e. each time a column will be clicked, we will add the column name to the SortDescriptions list and generate a Refresh event to request the server’s data sorted as desired.

Here is the SilverDatasetView helper class that will integrate our SilverDataTable as an ICollectionView:

public class SilverDatasetView : SilverCollectionView<SilverDataRow>

{

       public SilverDatasetView() : base()

       {

       }



       public SilverDatasetView(SilverDataTable service_data_table) : base()

       {

             CopyDataset( service_data_table);

       }



       public bool CopyDataset(SilverDataTable data_table)

       {

             if( data_table == null || data_table.Rows == null)

                    return false;



             base.SourceCollection      = data_table.Rows;

             return true;

       }



Once we receive the data from our database server, we can now set the DataGrid’s ItemsSource to a SilverDatasetView object:

SilverDatasetView   dataset_view = new SilverDatasetView(m_table.Rows);

data_grid.ItemsSource                   = dataset_view;



To tell the DataGridColumn how to send us desired sort items, we will set its SortMemberPath to the data column name:

Grid_col.CanUserSort              = true;

Grid_col.SortMemberPath    = data_col.Name;



The last part is to respond to the Refresh event of our SilverDatasetView in order to collect the desired sort field names and request the data accordingly:

dataset_view.OnRefresh     += new EventHandler<RefreshEventArgs>(m_dataset_view_OnRefresh);



void m_dataset_view_OnRefresh(object sender, RefreshEventArgs e)

{

       if( m_sort_fields == null)

             m_sort_fields = new ObservableCollection<SilverSortItem>();



       m_sort_fields.Clear();



       SilverSortItem      sort_element;



       foreach (SortDescription s in e.SortDescriptions)

       {

             sort_element = new SilverSortItem();

             sort_element.Target_column_name   = s.PropertyName;

             sort_element.Sort_direction             =

                           (s.Direction == ListSortDirection.Ascending)

                           ?(sort_direction.asc)

                           :(sort_direction.desc);



             m_sort_fields.Add( sort_element);

       }



       RequestSilverDataset();

}



RequestSilverDataset() method will, mainly, do the following:

DataServiceClient   cli    = service_helpers.DataServiceProxy(5);



cli.GetDataCompleted += new EventHandler<GetDataCompletedEventArgs>(cli_GetDataCompleted);

cli.GetDataAsync( str_connet_string, str_sql_command, m_sort_fields, n_records);



That is it… your DataGrid can now be sorted according to the real data on the server.

Don’t forget: Click the column to sort/ shift + click to add the column to the sorted list…



Download the sample code:

SilverDbDataGrid-2-sorting.zip (1.36 mb)

Silverlight database to DataGrid, yet another approach- Part II

This is the second part on how to format/adapt data to be displayed in a Silverlight DataGrid in a way that allows the preservation of business logic.



Server side objects

As we have seen, in part I, the server will prepare our data into the designed classes before transmitting it to the Silverlight client application.

On the server side, we have the following classes:



Data level classes

SilverDataTable

Represents the table (or view, or function…) data.

Contains:

A meta-data table

A list of data rows

SilverDataRow

Represents one record of data.

Contains:

List of data cells

Linked to:

A parent table

SilverDataCell

Represents one record’s data cell.

Linked to:

A parent row

A parent meta-data column

Meta-data level classes

SilverMetaTable

Represents the table’s meta-data (schema)

Contains:

A list of meta-data columns

Linked to:

A parent table

SilverMetaColumn

Represents one column’s schema information.

Note: This is the ‘Key Class’ where you can insert all your required business logic.

Linked to:

A parent meta-data table



The server uses these classes’ methods to expose a data service that returns a set of requested data:



[AspNetCompatibilityRequirements(RequirementsMode =

                    AspNetCompatibilityRequirementsMode.Allowed)]

public class DataService

{

       [OperationContract]

       public SilverDataTable GetData(string str_connect_string,

                                  string str_sql_command)

       {

             SilverDataTable sl_table = new SilverDataTable();



             sl_table.UserDefinedSqlCommand = str_sql_command;

             sl_table.GetData(str_connect_string);



             return sl_table;

       }

}



The GetData method of the SilverDataTable logic is as follows:

§  Open the database connection.

§  Read the meta-data structure of the SQL command.

§  Read the data rows of the SQL command.



Reading table’s meta-data (table schema)

For reading the table schema, SilverDataTable asks an OleDbDataAdapter to fill a DataTable (System.Data) schema and passes this DataTable it to its SilverMetaTable for reading its information:



OleDbDataAdapter    adapter      = new OleDbDataAdapter(str_sql_cmd, connection);

DataTable           table  = new DataTable();



table  = adapter.FillSchema(table, SchemaType.Mapped);

MetaDataTable.ReadDbTableColumns( table);



The Meta-data table (SilverMetaTable) offers a method to read a DataTable (System.Data) schema and create its own meta-data columns accordingly:



public bool ReadDbTableColumns(DataTable db_table)

{

       /// start with a ‘traditional’ checking!

       if( db_table == null || db_table.Columns == null)

                    return false;



       Columns.Clear();



       foreach (DataColumn col in db_table.Columns)

       {

             Add( col);

       }



       return true;

}



The Add method of this same class proceeds as in the following code:



public void Add(DataColumn data_column)

{

       /// start with a ‘traditional’ checking!

       if( data_column == null

                    || string.IsNullOrEmpty( data_column.ColumnName)

                    || data_column.DataType == null)

             return;



       /// does this column already exist?: if so, only update its information

       /// otherwise add a new column

       SilverMetaColumn    col    = this[data_column.ColumnName];



       if( col == null)

             Columns.Add(new SilverMetaColumn(data_column));

       else

             col.ReadColumnInfo( data_column);

}



As you may have already guessed through the above code, our meta-data table offers an indexer which returns the meta-data column by name:



public SilverMetaColumn this[string column_name]

{

       get

       {

             if( string.IsNullOrEmpty( column_name) || Count <= 0)

                    return null;



             foreach (SilverMetaColumn col in m_columns)

             {

                    if( string.Compare( col.Name, column_name, true) == 0)

                           return col;

             }

             return null;

       }

}



And the meta-data column offers a constructor using a DataColumn (System.Data) object:



public SilverMetaColumn(DataColumn data_column)

{

       ReadColumnInfo( data_column);

}



public bool ReadColumnInfo(DataColumn data_column)

{

       if( data_column == null)

             return false;



       m_name       = data_column.ColumnName;

       m_caption    = data_column.Caption;

       m_data_type  = data_column.DataType;



       return true;

}



Reading data records

Inside the SilverDataTable, reading the data rows (records) is straightforward:



OleDbCommand        cmd    = new OleDbCommand( str_cmd, conn);

OleDbDataReader     dr     = null;

SilverDataRow       row;



dr = cmd.ExecuteReader(CommandBehavior.CloseConnection);

while (dr.Read())

{

       row          = new SilverDataRow(this);

       row.ReadDataReader( dr);

       m_rows.Add( row);

}



The ReadDataReader method of the SilverDataRow class looks like the following pseudo-code:



int                 n_fields     = data_reader.FieldCount;

string              field_name,

                    field_value;

SilverMetaColumn    meta_column;



for( int ndx = 0; ndx < n_fields; ndx++)

{

       field_name   = data_reader.GetName( ndx);

       meta_column  = meta_table[field_name];

       field_value  = data_reader.GetValue(ndx).ToString();



       m_cells.Add(new SilverDataCell(this, meta_column, field_value));

}



The Silverlight client side

At the client side, our Silverlight application will uses (references) the server’s web service in order to obtain the data.

As we have seen above, the data will be received as a SilverDataTable object (containing the data rows + the meta-data table)



Binding the Silverlight DataGrid to the data

To bind the received data to the DataGrid, we will, basically, proceed according to the following steps:

§  Set the DataGrid to NOT auto generate its columns (we will do this ourselves)

§  Bind the DataGrid to our received SilverDataTable’s Rows (List<> of rows, often presented in Silverlight as an ObservableCollection<SilverDataRow> when referencing the wcf service)

§  For each SilverMetaColumn in our received meta-data table’s meta-columns:

§  Create a DataGridColumn according to the meta-column data type (and business logic constraints)

§  Bind the created data grid column using a converter that will be in charge of interpreting the related data cell’s data for all column’s rows

§  Add this DataGridColumn to the DataGrid



Here is a sample code (where some artifacts have been removed for better readability):



foreach (SilverMetaColumn met_col in meta_table.Columns)

{

       DataGridBoundColumn col    = CreateDataGridColumn( meta_col);

       Binding                    binding      = new Binding();



       col.Header                 = cell.Caption;

       binding.Path               = new PropertyPath("Cells");

       binding.Mode               = BindingMode.OneWay;

       binding.Converter          = (SilverRowConverter) this.Resources["row_converter"];

       binding.ConverterParameter = col_index;



       col.Binding         = binding;



       data_grid.Columns.Add(col);

}



Note: The converter is defined inside the Xaml code, like the following:



<UserControl.Resources>

       <local:SilverRowConverter x:Key="row_converter" />

       ...

       ...

</UserControl.Resources>



As you may have guessed, each DataGrid row will receive the corresponding data row’s Cells as its DataContext. And to present any row cells, it will call our designated converter.

To interpret one cell’s data, our converter takes one parameter: the cell index.

Using he cell index, the converter will be able to identify the related cell, its data and its meta-data column information (data type, or any other business logic constraints)



Here is a sample code for the converter:



public object Convert(object            value,

                    Type         targetType,

                    object              parameter,

                    CultureInfo culture)

{

       ObservableCollection<SilverDataCell>    row    =

                    (ObservableCollection<SilverDataCell>) value;

       int    col_index    = (int) parameter;



       SilverDataCell      cell         = row[col_index];



       return cell.ValueAsString;

}



Sample user interface to test the solution

In the joined sample code, to test our solution, the user interface proposes:

§  A TextBox control where you can enter the desired connection string to your database;

§  Another TextBox where you can type your SQL command;

§  A data grid where the received data will be displayed.



Any comments are welcome: you can write me at tnassar[at]isosoft.org



Download the sample application (1.32 mb).



Silverlight database to DataGrid, yet another approach- Part I

Introduction

As I exposed in an earlier post, Database structure can be declined into the following hierarchy

§ A table

§ Containing rows

§ Containing data //(arranged into columns)



This schema cannot live without the following meta-data structure

§ Table definition

§ Column definition:

§ Data type / data size (storage space reservation maximum size)



One important thing to observe is the relation between the meta-data definitions and the data storage or presentation:







.

All these structures and concepts have been used for years through several database access technologies (ado.net for example) using some well known objects like Dataset, DataTable… etc. and everybody was easily able to read and display data into grid controls in Windows and Web forms.



Now this question is once again exposed with Silverlight: How to read and display data into a DataGrid!

The reason for this is, mainly, that Silverlight is a “multiplatform browser plug-in”, and, as such, don’t know about database facility objects like Datasets, DataTables…

Also, Silverlight being a “client”, it cannot directly have access to what is stored or otherwise going-on on the server-side end. Accessing such information is done by calling Xml web services hosted at the server.



Interesting solutions

Some interesting work has been done to try to solve this dilemma. Some of the solutions proposed a (very interesting) workaround which requests the server’s xml dataset, and entirely creates database objects at runtime (MSIL!) on the Silverlight client side.

Although this seems quite fascinating, it is still a sort of ‘black magic’ solution, and lets me uncomfortable to use it as a sustainable solution. It also misses some of the interesting features of Silverlight, like Binding Converters.



Starting at the bottom line

One may think: A Dataset already has all what we need: Meta data definitions, Data rows… etc.

Let’s create a Dataset on the server-side and then write it down to the client through a web service. The client can then consume the received dataset by incorporating it into the required classes.



I tried this solution, but ended up by finding myself in front of a great deal of ‘raw’ data that should be reformatted on the client… And, worse, this data reformatting altered some important business logic that should be decided on the server-side.

For example, in a sales representative client application, if a ‘customer’ field value inside an ‘order’ should be only one of the current user’s authorized customers; this would obviously be better decided on the server not the client.

Even the fact of presenting the ‘customer’ field as selection option (combo box) or as a plain text field is better to be decided at the server end.



The ‘Dataset’ is a great and useful object, but it only provides ‘raw’ relational data. It needs to be complemented by other features in order for the business logic (at the server-side) to take control over data presentation and manipulation process (at the client-side).





The diagram below illustrates the basic schema used by the proposed solution to represent the data stored in a database.



The diagram’s classes represent the 2 levels of a database table:

§  At the meta-data level : SilverMetatTable, composed of one or more SilverMetaColumn(s);

§  The data storage level is represented by SilverDataTable, which has a meta-data table definition (SilverMetaTable). The data table contains zero or more rows (SilverDataRow), each of which containing data cells (SilverDataCell). Each data cell is linked to the corresponding meta-data column.



The meta-data column represents the basic properties of a database column (data type, default value, is/is not nullable… etc.), but can now expose all the desired presentation features and functionalities as required by the business logic.

It may, for example, expose the desired presentation type (plain text / option list… etc.), for an option list: the choice-elements (or where to request them), the data access options (read-only / read-write…) according to session context or application context… etc.



Surprisingly coding the required classes for this part of the solution was a matter of a few hundreds of lines of code (approx 4 hours + 2 for repairing some of my ‘chronic’ errors… I do many!)



In the next post, I will talk about ‘The client side’ job… and deliver a fully-functional sample application.

See part II



Html Content Viewer for Silverlight

In a previous post, I talked about a solution to manipulate (animate for example) the Silverlight control inside the hosting html page.



The reverse side of the problem (displaying html content inside a Silverlight control), is a requirement which comes out in the context of numerous web projects.



Some of the proposed solutions suggest html translators in order to obtain the final text into a sort of ‘Rich Edit’ control.

Although it is very good to have a rich edit Silverlight control, the solution seems too tedious to solve a relatively simple problem: displaying html content into an html page (i.e. the page hosting our Silverlight control).



Building on the previous sample of animating the Silverlight control into the hosting page, I tried to make a user control that dynamically creates an iFrame to display the desired html content inside the main Silverlight page.

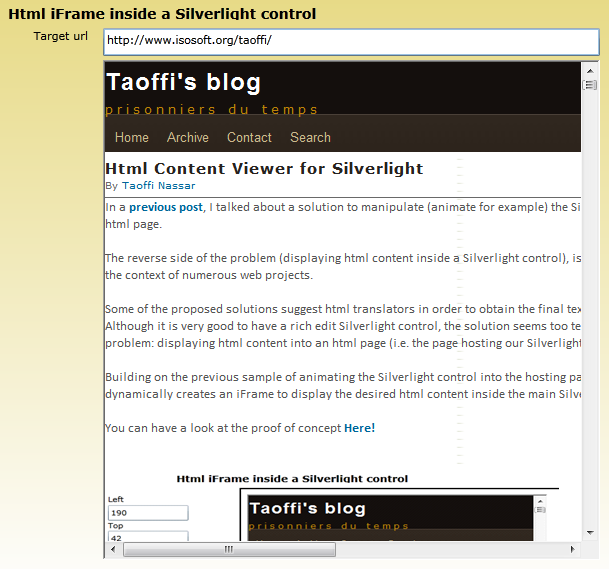

You can have a look at the proof of concept Here!







Dynamically create an html control

Suppose we want to display the html page: http://mycompany.com/page.html inside our Silverlight control.



The solution can be:

§  Use the HtmlPage to locate the hosting HtmlElement (where our Silverlight control lives: that can be straightforward:  HtmlPage.Plugin.Parent;)

§  Create a new html container (for example, a DIV)

§  Place an iframe html element inside this container

§  Set the iframe source to the desired page

§  Insert the container into the hosting HtmlElement





Here is a sample code illustrating these steps



private void CreateHtmlContent()

{

       HtmlElement  plugin_div   = HtmlPage.Plugin.Parent,

                    new_div      = HtmlPage.Document.CreateElement("div"),

                    iframe       = HtmlPage.Document.CreateElement("iframe");



       /// set the new div position to absolute

       new_div.SetStyleAttribute("position", "absolute");

       new_div.SetStyleAttribute("z-order", "5");



       new_div.SetStyleAttribute("left", "200px");

       new_div.SetStyleAttribute("top", "40px");

       new_div.SetStyleAttribute("width", "400px");

       new_div.SetStyleAttribute("height", "400px");



       /// setup the iframe style, attributes and target page

       iframe.SetStyleAttribute("width", "100%");

       iframe.SetStyleAttribute("height", "100%");

       iframe.SetAttribute("src", "http://www.isosoft.org/taoffi/");



       /// add the iframe to the new div

       new_div.AppendChild(iframe);



       /// add the new div to the hosting html page

       plugin_div.AppendChild(new_div);

}



The solution exposed here can be a suitable foundation to solve many situations where html content can be composed and/or displayed inline within a Silverlight control.

Let us begin by making a custom control, a HtmlContentViewer say!



The sample code exposes some more!



SilverHtmlContent.zip (49.34 kb)

Scrollable ComboBox

I am working on a new Silverlight user interface version of Simplesite.net and, as anyone can imagine, that involves a good dive into Silverlight as a ‘Line Of Business’ application technology.

One of the problems I encountered was to make the Combo box control able to respond to Mouse Wheel messages.

After having searched on different blogs and web sites, I didn’t find a suitable solution and ended up by delving into the subject.

Some of the proposed solutions consisted in ‘bringing into view’ one of the combo box items to force the list to scroll up or down as required… that seemed a little bit like a good workaround but was not very efficient and had a bad visual aspect.



What is a Silverlight ComboBox?

One of the nice (and pedagogic) aspects in Expression Blend is to be able to edit any existent control template (right click the control, select Edit Template / Edit a copy).





In Expression Blend, a Control Template reveals all the components of the control… this helps to understand some of the internal mechanisms of the control and how to use them efficiently.



To know more about the ComboBox control, I used Blend to insert one somewhere, and selected to edit a copy of its template.

That revealed the main components of the control:

§ A Layout Grid, containing:

§ A border (content presenter border) containing the static part of the combobox;

§ A Popup containing a ScrollViewer which will display the items.



It now seems clear that the scroll problem should be handled at the ScrollViewer component.



The SetIsMouseWheelScrollingEnabled method of the ScrollViewer can simply be used to activate the Mouse Wheel message handling for this component.



The solution

I saved my template to the application resources (App.xaml) with x:key=”combo_box_template”

<!-- ************* scrollable combo box template *******************************-->

<ControlTemplate x:Key="combo_box_template" TargetType="ComboBox">





I then created a class named ScrollableComboBox deriving from ComboBox

The control template is loaded and applied at class’s instantiation… and Mouse Wheel handling activated on the corresponding ScrollViewer component.





public partial class ScrollableComboBox : ComboBox

{

       protected ScrollViewer            m_scroll_viewer            = null;



       public ScrollableComboBox()

       {

             this.Style   = (Style) App.Current.Resources["ScrollableComboBoxStyle"];

             this.Template = (ControlTemplate) App.Current.Resources["combo_box_template"];

             this.ApplyTemplate();



             m_scroll_viewer = (ScrollViewer)GetTemplateChild("ScrollViewer");



             if (m_scroll_viewer != null)

             {

                    m_scroll_viewer.SetIsMouseWheelScrollingEnabled(true);

             }

    }





Surprisingly, that is all we need to activate scrolling on a Silverlight ComboBox!

We can now insert a ScrollableComboBox anywhere we need.



Animating Silverlight control inside the HTML Page

Live demo

.





A Silverlight control can communicate and interact with other HTML elements of the page on which it is placed.

This is done by using the HtmlPage object (namespace System.Windows.Browser)



By using HtmlPage, you can have access to all HTML elements of the current page and be able to get and set many of their properties and attributes, and, accessorily, call DHTML script functions that may be located there.

This means, among other things, that you can get and set style attributes of the HTML element inside which your own Silverlight control is hosted (the DIV element having the id commonly named "silverlightControlHost")



<div id="silverlightControlHost"

       ...



This gave me an idea about creating a custom control which would represent this same hosting html DIV element and, through this custom control, interact with the hosting element properties (width, height, location… etc.)

One of the nice features of Silverlight is the Storyboard animations usually used to animate Silverlight controls.

So, what if we try to use a storyboard to animate the Silverlight hosting html element!



Suppose that our animation should move the html host element across the page. From an html viewpoint, this would mean to change its top/left coordinates.

A Silverlight user control doesn’t contain Top / Left properties required to do such a job. So we have to add those properties to our custom control.



I first created an (empty) custom user control:



Xaml:

<UserControl x:Class="SilverHtmlInteraction.HostingDivControl"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

       Background="Transparent"

       SizeChanged="UserControl_SizeChanged"

    Width="200" Height="200">

    <Grid x:Name="LayoutRoot" Background="White">



    </Grid>

</UserControl>



The control members:



private HtmlElement m_div        = null;



public HtmlElement Div

{

       get { return m_div; }

       set { m_div = value; }

}



The new Left and Top properties



public double Left

{

       get { return attrib = GetDimension("left", "offsetLeft", 0.0); }

       set { SetDimentionAttribute("left", value); }

}

public double Top

{

       get { return attrib = GetDimension("top", "offsetTop", 0.0); }

       set { SetDimentionAttribute("top", value); }

}





How to obtain html element dimensions (width, height, left, top... etc.)



// get the html element’s dimension (example: width, height, left...)

// first try to find the dimension in the element’s style (width, height, left, top...)

// if not found, try to obtain the element’s dimension property (offsetWidth, offsetHeight...)

private double GetDimension(string attrib_name, string property_name, double default_value)

{

       double attrib = GetDimensionAttribute(attrib_name, default_value);



       // if the style attribute is not present, try to get the dimension property

       if (attrib <= 0.0)

             return GetDimensionProperty( property_name, default_value);

       return attrib;

}



// get the html element’s style attribute (example: width, height, left...)

protected double GetDimensionAttribute(string attrib_name, double default_value)

{

       if (m_div == null)

       {

             debug_display_div_error();

             return default_value;

       }



       // try to get the style attribute’s value

       string str_value = m_div.GetStyleAttribute(attrib_name);



       if (string.IsNullOrEmpty(str_value))

       {

             return default_value;

       }

       // remove the dimension's unit (px)

       str_value = str_value.Replace("px", "");



       double value = default_value;



       // try to convert to numeric value

       if (double.TryParse(str_value, out value) == false)

             return default_value;

       return value;

}



// get the html element’s dimension property (example: offsetHeight, offsetWidth...)

protected double GetDimensionProperty(string property_name, double default_value)

{

       if( m_div == null)

       {

             debug_display_div_error();

             return default_value;

       }



       string str_value    = m_div.GetProperty( property_name).ToString();



       if (string.IsNullOrEmpty(str_value))

       {

             return default_value;

       }

       double value = default_value;



       // try to convert to numeric value

       if (double.TryParse(str_value, out value) == false)

             return default_value;



       return value;

}



I then registered the new Left and Top properties with the dependency system:



public static DependencyProperty LeftProperty = DependencyProperty.Register(

                    "Left", typeof(double), typeof(HostingDivControl),

                    new PropertyMetadata(

                           new PropertyChangedCallback(LeftPropertyChanged) ));



public static DependencyProperty TopProperty = DependencyProperty.Register(

                    "Top", typeof(double), typeof(HostingDivControl),

                    new PropertyMetadata(

                           new PropertyChangedCallback(TopPropertyChanged)));



private static void LeftPropertyChanged(DependencyObject obj,

                           DependencyPropertyChangedEventArgs e)

{

       if (obj == null)

             return;

       if (obj is HostingDivControl != true)

             return;



       HostingDivControl ctrl = (HostingDivControl)obj;



       ctrl.Left    = (double)e.NewValue;

}





private static void TopPropertyChanged(DependencyObject obj,

                           DependencyPropertyChangedEventArgs e)

{

       if( obj == null)

             return;

       if( obj is HostingDivControl !=true)

             return;



       HostingDivControl   ctrl   = (HostingDivControl) obj;



       ctrl.Top     = (double) e.NewValue;

}





The html element accessor should do some work each time this member is changed:



public HtmlElement Div

{

       get { return m_div; }

       set

       {

             m_div = value;



             if (m_div != null)

             {

                    base.Width   = this.Width;

                    base.Height  = this.Height;

                    Left         = GetDimension("left", "offsetLeft", 0.0);

                    Top          = GetDimension("top", "offsetTop", 0.0);



                    // to be able to change the left and top propertites,

                    // the html element should have its position style set

                    // to relative or absolute.

                    If (string.IsNullOrEmpty( m_div.GetStyleAttribute("position")))

                           m_div.SetStyleAttribute("position", "relative");

             }

             else

                    m_div_id = "";

       }

}





We are now ready to use our new custom control to animate the Silverlight control inside its hosting html page.



<Grid x:Name="LayoutRoot" Background="Transparent">

       <local:HostingDivControl x:Name="host_div" Margin="0"/>



The animation Storyboard

Let’s create a storyboard that changes the top/left properties of our control (which is the silver light control itself)

Note: I couldn’t use Expression Blend to create the storyboard. Blend seemed confused about the properties to be animated for this ‘special’ control. So I ended up by creating the storyboard by hand!



<UserControl.Resources>

       <Storyboard x:Name="Storyboard1">

             <DoubleAnimationUsingKeyFrames BeginTime="00:00:00"

             Storyboard.TargetName="host_div" Storyboard.TargetProperty="(Top)">

                    <EasingDoubleKeyFrame KeyTime="00:00:00" Value="0"/>

                    <EasingDoubleKeyFrame KeyTime="00:00:00.50" Value="50"/>

                    <EasingDoubleKeyFrame KeyTime="00:00:00.80" Value="85"/>

                    <EasingDoubleKeyFrame KeyTime="00:00:01.00" Value="130"/>

             </DoubleAnimationUsingKeyFrames>



             <DoubleAnimationUsingKeyFrames BeginTime="00:00:00"

             Storyboard.TargetName="host_div" Storyboard.TargetProperty="(Left)">

                    <EasingDoubleKeyFrame KeyTime="00:00:00" Value="0"/>

                    <EasingDoubleKeyFrame KeyTime="00:00:00.50" Value="100"/>

                    <EasingDoubleKeyFrame KeyTime="00:00:00.80" Value="225"/>

                    <EasingDoubleKeyFrame KeyTime="00:00:01.00" Value="350"/>

             </DoubleAnimationUsingKeyFrames>

                    ...

                    ...



       </Storyboard>

</UserControl.Resources>





Live demo



Download the sample code

AnimatedSilverHtmlHost.zip (83.45 kb)
